Postby fc59 » Sat Jul 15, 2017 6:56 pm

g day shirts and skirts i am a bit of an infrequent user but a new kayak build is probably worth a build thread

a while ago i bought an elcheepo anaconda kayak sub $400 to replace my elcheepo oztrail kayak sub $300 that lasted 5-7 years


the plan is to rebuild my old kayak more or less probly more

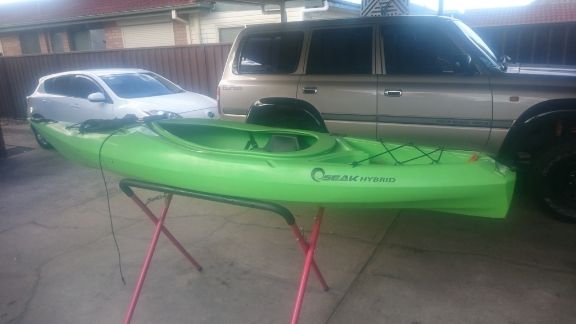

first thing on the list is to make a motor mount so up on the stands remove the rear handel

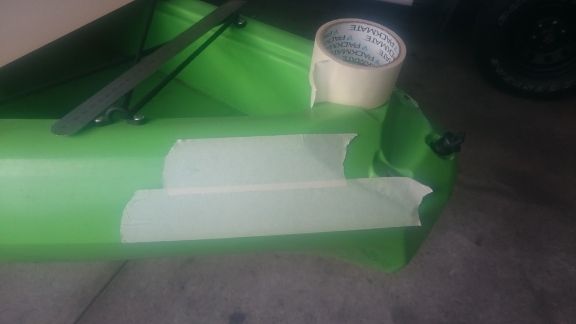

then a bit of masking tape on the side

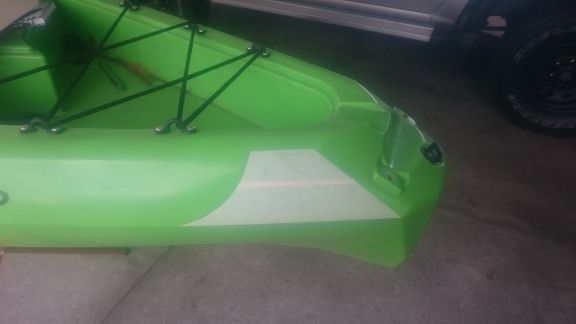

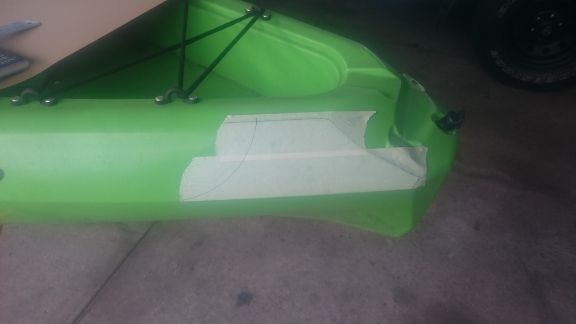

making some ruff marks going with the lines of the kayak


once i was happy i trimmed it to shape with a stanley knife


removed from the side of the yak and stuck to a backing cardboard along with the other parts the will need to be made from 2mm alloy


thats about it for today
