Hds 7 touch

#1 Post by scaffdogg » Thu Aug 20, 2015 11:02 am

Hey guys just wondering if anyone's put there lss2 mounted inside the hull I'm just checking my options as to mounting the structure scan transducer I have the ram mount arm but would like to mount internally any pics or info would be greatly appreciated cheers

User avatar
Jarryda
KFDU Angler
Posts: 105
Joined: Wed Jan 09, 2013 2:17 pm
Local Fishing Region: QLD
Kayaks: Hobie Outback, Viking Espri, Viking Ozzie

Re: Hds 7 touch

#2 Post by Jarryda » Thu Aug 20, 2015 12:26 pm

I have done it before. It does work when installed correctly, (No bubbles at all in the glue). I now have mine mounted externally as i found as the glue got older it started to form bubbles and stopped working well, that could be due to me loading my kayak upside down on the roof of the truck and getting direct sunlight and heat. Selleys All clear or Marine Goop are the best glues to use. Just use the same technique as a standard shoot thru hull transducer install, Make a reservoir, pour warmed glue in, place transducer in etc, just remember you will need ALOT of glue :lol:

o0Ben0o
KFDU Angler
Posts: 15
Joined: Tue Feb 24, 2015 4:41 pm
Local Fishing Region: Anywhere within a few hours of Penrith
Kayaks: 2015 PA 14
Location: Penrith

Re: Hds 7 touch

#3 Post by o0Ben0o » Thu Aug 20, 2015 4:55 pm

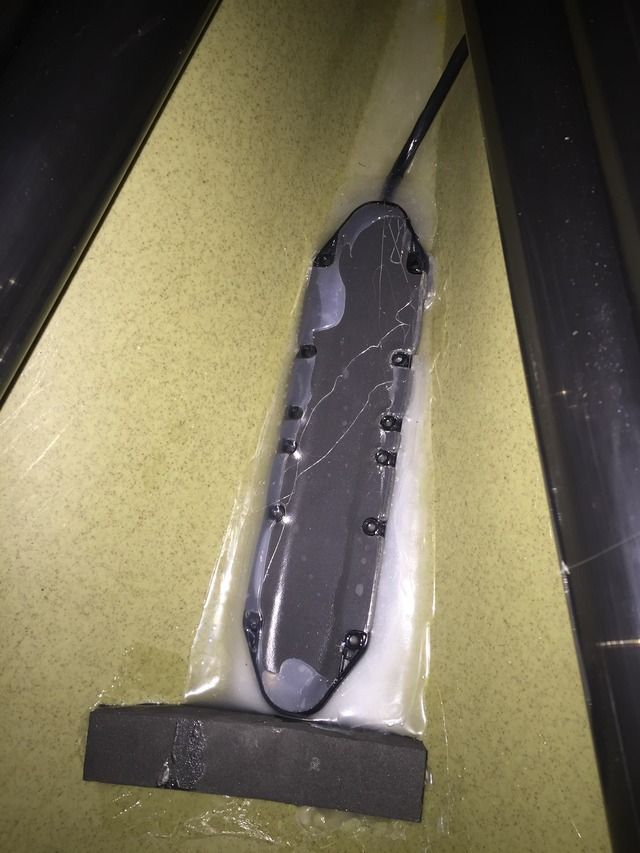

Mine is gooped in to the front of the PA14... Seems to do the job.

Hope the pics not too big.

User avatar
BrettoQld
KFDU 1000 Club
Posts: 1254
Joined: Sun May 23, 2010 6:06 pm
Local Fishing Region: Scarborough
Kayaks: Esky Lid
Location: Nth Brisbane

Re: Hds 7 touch

#4 Post by BrettoQld » Sun Aug 23, 2015 7:04 pm

Jarryda wrote:I have done it before. It does work when installed correctly, (No bubbles at all in the glue). I now have mine mounted externally as i found as the glue got older it started to form bubbles and stopped working well, that could be due to me loading my kayak upside down on the roof of the truck and getting direct sunlight and heat. Selleys All clear or Marine Goop are the best glues to use. Just use the same technique as a standard shoot thru hull transducer install, Make a reservoir, pour warmed glue in, place transducer in etc, just remember you will need ALOT of glue :lol:
Hey Jarryd

Any chance you could post a photo of how your Structure Scan transducer is mounted externally? I still haven't installed mine. Looking for some ideas for external mounts on Outbacks.
Cheers,
Bretto

User avatar
Jarryda
KFDU Angler
Posts: 105
Joined: Wed Jan 09, 2013 2:17 pm
Local Fishing Region: QLD
Kayaks: Hobie Outback, Viking Espri, Viking Ozzie

Re: Hds 7 touch

#5 Post by Jarryda » Mon Aug 24, 2015 12:07 pm

BrettoQld wrote:
Jarryda wrote:I have done it before. It does work when installed correctly, (No bubbles at all in the glue). I now have mine mounted externally as i found as the glue got older it started to form bubbles and stopped working well, that could be due to me loading my kayak upside down on the roof of the truck and getting direct sunlight and heat. Selleys All clear or Marine Goop are the best glues to use. Just use the same technique as a standard shoot thru hull transducer install, Make a reservoir, pour warmed glue in, place transducer in etc, just remember you will need ALOT of glue :lol:
Hey Jarryd

Any chance you could post a photo of how your Structure Scan transducer is mounted externally? I still haven't installed mine. Looking for some ideas for external mounts on Outbacks.
Hey Mate,
I used the LSS specific RAM arm, Mounted it just behind the seat so i can easily access it while on the water, The picture makes it look super low but its not as low as the rudder whils't in the water so dont need to worry too much about it hitting in shallow water unless the rudder is hitting bottom. Works a treat.
You do not have the required permissions to view the files attached to this post.

User avatar
BrettoQld
KFDU 1000 Club
Posts: 1254
Joined: Sun May 23, 2010 6:06 pm
Local Fishing Region: Scarborough
Kayaks: Esky Lid
Location: Nth Brisbane

Re: Hds 7 touch

#6 Post by BrettoQld » Mon Aug 24, 2015 1:37 pm

Jarryda wrote: Hey Mate,
I used the LSS specific RAM arm, Mounted it just behind the seat so i can easily access it while on the water, The picture makes it look super low but its not as low as the rudder whils't in the water so dont need to worry too much about it hitting in shallow water unless the rudder is hitting bottom. Works a treat.
Cheers Jarryd.

Do you notice the drag through the water?
Cheers,
Bretto

User avatar
Jarryda
KFDU Angler
Posts: 105
Joined: Wed Jan 09, 2013 2:17 pm
Local Fishing Region: QLD
Kayaks: Hobie Outback, Viking Espri, Viking Ozzie

Re: Hds 7 touch

#7 Post by Jarryda » Mon Aug 24, 2015 2:02 pm

I dont notice in terms of adding drag meaning i have to work harder. But it does make noise when underway.

User avatar
BrettoQld
KFDU 1000 Club
Posts: 1254
Joined: Sun May 23, 2010 6:06 pm
Local Fishing Region: Scarborough
Kayaks: Esky Lid
Location: Nth Brisbane

Re: Hds 7 touch

#8 Post by BrettoQld » Wed Aug 26, 2015 8:52 am

Cheers for that mate. That's pretty much made up my mind for me. I'd been mulling over installing the LSS inside the hull for the last 5 weeks, but I wasn't convinced it would work long term. It seems my concerns were the same problems you experienced.
Cheers,
Bretto

scaffdogg
KFDU Angler
Posts: 59
Joined: Thu Oct 23, 2008 4:41 pm
Local Fishing Region: Gold coast

Re: Hds 7 touch

#9 Post by scaffdogg » Wed Sep 30, 2015 9:11 pm

Is it true that you need to mount the lss2 close to the other transducer so you don't get different readings ?

User avatar
Jarryda
KFDU Angler
Posts: 105
Joined: Wed Jan 09, 2013 2:17 pm
Local Fishing Region: QLD
Kayaks: Hobie Outback, Viking Espri, Viking Ozzie

Re: Hds 7 touch

#10 Post by Jarryda » Thu Oct 01, 2015 2:12 pm

scaffdogg wrote:Is it true that you need to mount the lss2 close to the other transducer so you don't get different readings ?
Yes and no, Ideally you would have them directly beside each other so that the image line up. For eg if you go over a tree they both come up at the same time on Sonar and on Downscan. But its not a must, My sonar transducer is mounted about 800mm in front of where the LSS is. Its just something you need to keep in mind when comparing readings.
